BadShoes Parts Products

Im now selling popular parts along with misc. and hard to find stuff. This page has the basic overhaul kits that Ive used in my videos. Understand Im just starting out so always email first to be sure the parts are in stock. Its best to study the video and/or shop manual related to what youre working on, do a complete tear down and inspection before buying any parts. Often, other worn items may need to be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and one-way roller/spring set for example, email me with type of car or truck, 4x4 etc. so I can put together the correct pieces for your project. I can give you a list of commonly replaced and recommend parts, prices and availability. Shipping is included (USA 48 continues states only) with these kits. Shipping to other locations will require extra charges, email for details. Some smaller parts may be added without shipping charge if purchased with an overhaul kit. Remember to contact me with details of your project so I can help you.

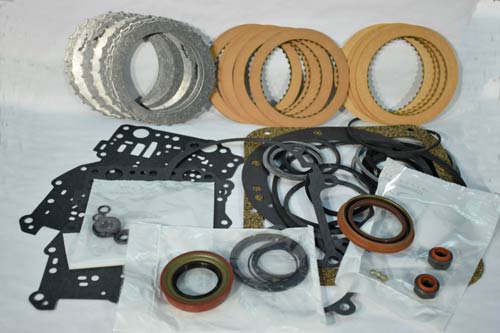

Early C4 (64-69) base overhaul kit.

This C4 early 64-69 package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing, pump, front servo and two valve body gaskets, three ball checks, governor screen, two band adjusting seal nuts, stator and governor slip rings, pump and rear slip yoke seals and misc. o-rings. Eight .079 thick steel plates, five plain .063 forward fiber plates and four waffle .078 direct fiber plates. The fiber plate are normally Raybestos brand. Understand that the 64 model may have some unique pieces like the filter and valve body gasket. The tear down will reveal any differences. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and one-way roller/spring set for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project.
$89.95 including shipping to 48 continuous states

$89.95 including shipping to 48 continuous states

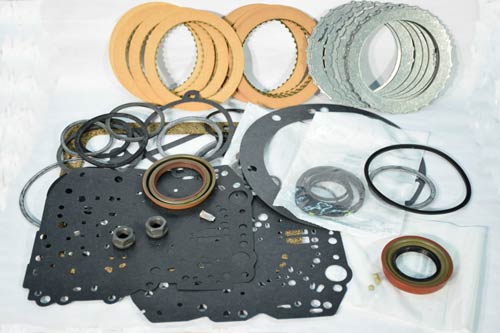

Later C4 (70-81) base overhaul kit.

This C4 later 70 to 81 package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing, pump, two valve body gaskets, three ball checks, governor screen, two band adjusting seal nuts, stator and governor slip rings, pump and rear slip yoke seals and misc. o-rings. Eight .079 thick steel plates, five plain .063 forward fiber plates and four waffle .078 direct fiber plates. The fiber plates are normally Raybestos brand. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild need a new filter and intermediate band for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project.
$89.95 including shipping to 48 continuous states

$89.95 including shipping to 48 continuous states

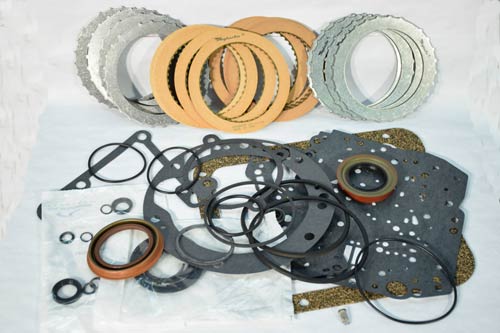

C5 (82-86) base overhaul kit.

This C5 82-86 package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing, pump, front servo and two valve body gaskets, one ball check, governor screen, two band adjusting seal nuts (one fine thread one coarse), stator and governor slip rings, pump and rear slip yoke seals and misc. o-rings. Four .079 and four .090 steel plates, five plain .063 forward fiber plates and four waffle .078 direct fiber plates. The fiber plates are normally Raybestos brand. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and modulator valve for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project.
$99.95 including shipping to 48 continuous states

$99.95 including shipping to 48 continuous states

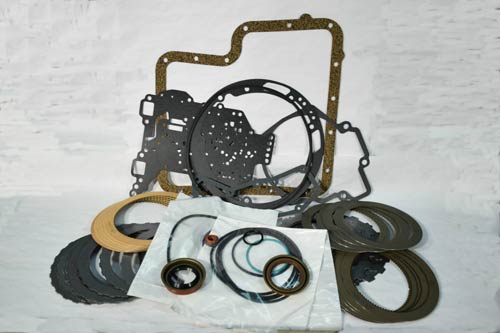

Early C6 (66-67) base overhaul kit.

This C6 early 66-67 package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing, pump, front servo and valve body gaskets, one band adjusting seal nut, stator and governor slip rings, pump and rear slip yoke seals and misc. o-rings. Eight .078 thick steel plates, six low/rev. .068 steel plates, five plain .063 forward fiber plates, four waffle .078 direct fiber plates and 6 low/rev. .078 waffle fiber plates. Understand that these models may have some unique pieces like the forward clutch fiber spline count (square teeth), valve body gasket and input shaft tooth count. The fiber plates are normally Raybestos brand. The tear down will reveal any differences. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and one-way roller/spring set for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project.
$169.95 including shipping to 48 continuous states

$169.95 including shipping to 48 continuous states

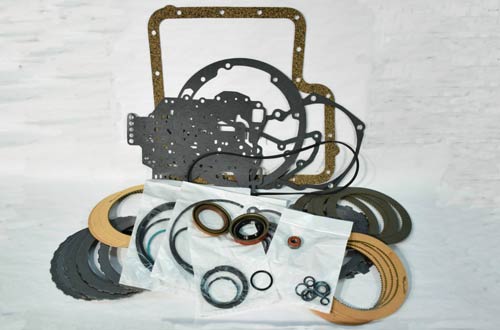

C6 (67 to early76) base overhaul kit.

This C6 early 67 to early 76 package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consists of all the rubber seals, pan, extension housing, pump, front servo and valve body gasket, one band adjusting seal nut, stator and governor slip rings, pump and rear slip yoke seals and misc. o-rings. Eight .078 thick steel plates, six low/rev. .068 steel plates, five plain .063 forward fiber plates (pointed teeth), four waffle .078 direct fiber plates and six low/rev. .078 waffle fiber plates. The fiber plates are normally Raybestos brand. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and one-way roller/spring set for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project.
$159.95 including shipping to 48 continuous states

$159.95 including shipping to 48 continuous states

C6 (late 76 and later) base overhaul kit.

This C6 late 76 up package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing, pump, front servo and valve body gasket, one band adjusting seal nut, stator and governor slip rings, pump and rear slip yoke seals and misc. o-rings. Eight .078 thick steel plates, five low/rev. .068 steel plates, four plain .075 forward fiber plates (pointed teeth), four waffle .078 direct fiber plates and five low/rev. .078 waffle fiber plates. The fiber plates are normally Raybestos brand. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and intermediate band for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project.
$149.95 including shipping to 48 continuous states

$149.95 including shipping to 48 continuous states

FMX (68-81) base overhaul kit.

This 68 to 81 FMX package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing gaskets, governor slip rings, pump and rear slip yoke seals and misc. o-rings. Nine .069 thick steel plates, four waffle .078 and five waffle fiber plates .059. The fiber plates are normally Raybestos brand. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and modulator valve for example, email me with type of car or truck, 4x4 etc. so I can put together exactly what is best for your project. Understand that there are less and less parts available for the FMX and the other COM iron transmissions so inspect closely.
$129.95 including shipping to 48 continuous states

$129.95 including shipping to 48 continuous states

AOD (80-93) base overhaul kit.

This 83-93 AOD package is a base overhaul kit that includes 80 to 90% of the parts needed for a basic cleaning and renewal. Package consist of all the rubber seals, pan, extension housing, pump, valve body gaskets, stator and governor slip rings, pump and rear slip yoke seals, seven ball checks, governor filter and misc. o-rings. Three .069 thick steel interm. plates, eight steel forward and reverse .069 plates (for cast drums), six steel direct .068 plates (cast drum), nine forward and rev. waffle fibers .062 (see note below), six waffle direct fibers .073 and three interm. .077 fibers.

Note: Understand that some models may have different forward, direct, or interm. clutch plate count and OD band size. 80 to 83 units may have different size rev./low clutch fibers and later 89 to 93 AODs may have steel instead of cast drums which means different forward, rev. and direct clutch steels are needed. The fiber plates are normally Raybestos brand. The tear down will reveal any differences. Its always best to do a complete tear down and inspection before buying any parts. Often, other worn items may be replaced, some of which I carry and can be added to your package. If the rebuild needs a new filter and one-way roller/spring set for example, email me with your list, type of car or truck, 4x4 etc. so I can put together exactly what is best for your project. Note: Its best to verify what you have during disassembly before getting this kit. That allows me to put the correct fibers and steels in the package at time of purchase.
$180.95 including shipping to 48 continuous states

$180.95 including shipping to 48 continuous states

Inline cooler filter kit.

Before the trans. is ready to go in, the cooler lines should be cleaned. Please wear safety glasses when youre working on any automotive type of work. You may use a hose hooked to your parts cleaner to pump solvent through one cooler line and attach another hose to the remaining line back to the cleaner. Then blow out lines with compressed air (not more than 30 psi). If the tranny had trashed up fluid, I would highly recommend using a cooler line filter in the return line. Be sure the filters arrow points to the return fitting. These filters will catch small particles that may still be stuck in the cooler or floating in the converter (if the converter is being reused). If the trans blows in the future (possibly in a racing application) the filter can catch trash before it gets to the lube system which might save a few bushings. This kit has the filter, 3/8 hose, line fitting for 5/16 and 3/8 tubes, clamps and reminder decal. Theres a limited number of these kits so email for availability.
$25.95 including shipping to 48 continuous states

$25.95 including shipping to 48 continuous states
